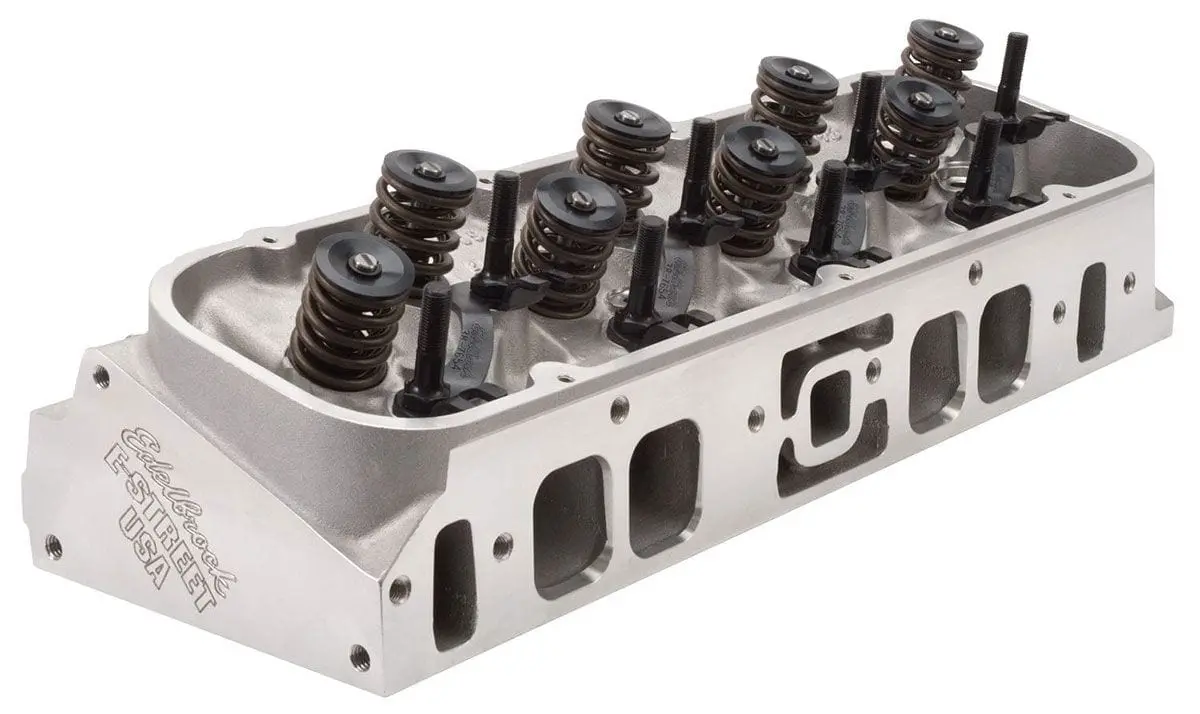

E-Street Ed50459 Cylinder Head – Single Oval Port, Fully Assembled Aluminum Head

Description

E-Street 290 Oval Port Cylinder Heads – Single – Complete

Big Block Chevy, With 290cc oval ports & 110cc combustion chambers

ED50459

50459

E-Street cylinder heads are an all new line of Edelbrock heads designed for entry-level street performance engines, ideal for operating in the idle to 5,500 rpm range. Manufactured in the USA, by Edelbrock, these heads feature A356 aluminium castings that are heat treated to T-6 spec for superior casting strength and quality. Their modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine. These features improve an engine’s efficiency, resulting in more horsepower and torque and improved mileage potential.Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using.Combustion chamber volume: 110ccIntake runner volume: 290ccExhaust runner volume: 110ccIntake valve diameter: 2.19″Exhaust valve diameter: 1.88″Valve stem diameter: 11/32″Valve guides: Manganese bronzeDeck thickness: 9/16″Valve spring diameter: 1.55″Valve spring maximum lift: .700″Rocker stud: 7/16″ with guide plateGuide plate: Hardened steelPushrod diameter: 3/8″Valve Angle: 26°Exhaust port location: StockSpark plug fitment: 14mm x 3/4″ reach, gasket seatMade In: USA
